Wood Board Panel Grain Acp 3mm Sheet Wall Cladding Panel-Product Center-Golden River Group Factory Ltd-

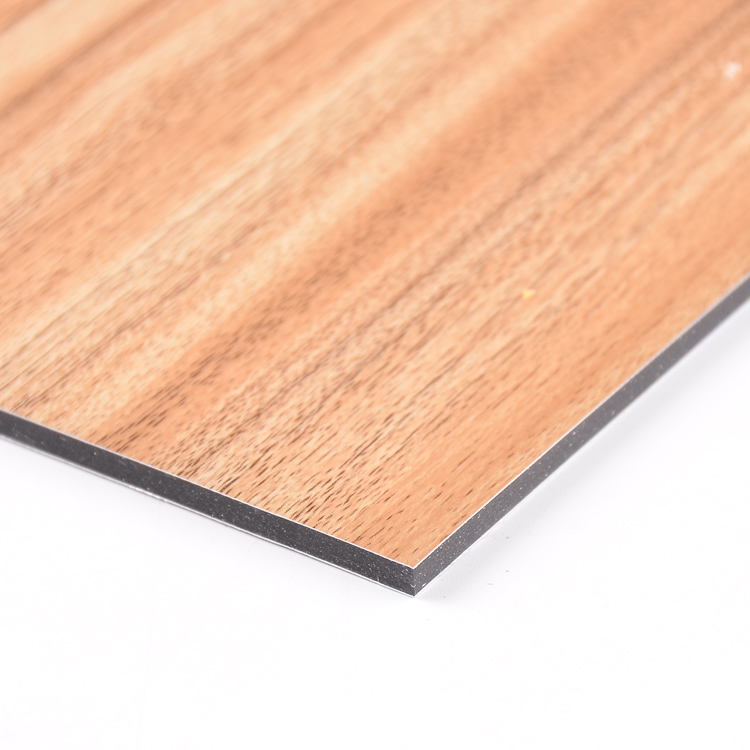

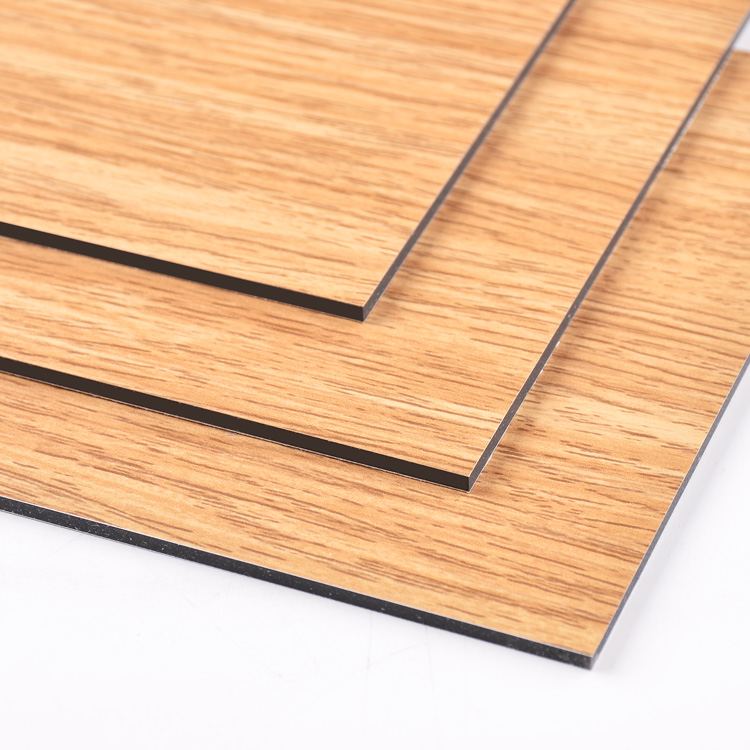

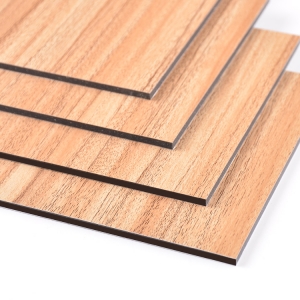

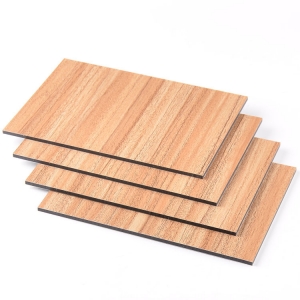

Wood grain ACP board

Brand:	Alumtimes
Warranty:	More than 5 years
Application:	Building, Wall Cladding
Place of Origin:	Guangdong, China
Function:	Anti-Static, Antibacterial, Fireproof, Mould-Proof
Aluminum Thickness:	0.06-0.50mm
Certificate:	CE/SGS/ISO9001
After-sale Service:	Online technical support
Project Solution Capability:	total solution for projects
Design Style:	Industrial
Surface Treatment:	Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated, Wood grain Aluminum Composite Panel
Panel thickness:	2/3/4/5/6mm
Color:	Customers Requirements
Get A Quote

Aluminium Composite Panel Details

1)Material:
A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer.
B) Core: nontox low density polyethylene.
C) Back: aluminium alloy sheet coated with polyester resin painting.
D) Surface coating thickness: 32μ±1μ.
E) Aluminium alloy: 3003 H24.
F) Sheet thickness: 0.3mm,0.4mm,0.5mm .

2)Dimensions:
A) Thickness: 3mm,4mm,6mm,8mm,10mm.
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max).
C) Length: 2440mm,3050mm,3200mm( max:6000mm).
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness.
E) Standard size:1220*2440mm.
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G) Non-stanard size are available according to requirement.

3)Standard:
A) West Europe standard ( Germany DIN Standard).
B) The EAST Europe standard ( Russian standard ).
C) The commonweathlth standard (U.K BS Standard ).
D) The North America ASTM standard.

4)Alumtimes® ACP compared with different products( Lightness / Rigidity ):
The composite structure of Alumtimes® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes Alumtimes® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.

5) Alumtimes® ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity

		Alumtimes® ACP		Aluminium
Rigidity (E J)	Section modulus	Thickness	Weight	Thickness	Weight
1250 kN cm2/m	1.25 cm3/m	3 mm	4.5kg/m2	2.7 mm	7.3kg/m2
2400 kN cm2/m	1.75 cm3/m	4 mm	5.5kg/m2	3.3 mm	8.9kg/m2

6) Alumtimes® ACP Physical Properties for Panel:

Panel density	5.5kg/m2
Peel Strength	Average 7.0 N/mm
Tensile Strength	52.5 Mpa
Flexural Strength	100.0 Mpa
Shear Strength	28.1 Mpa
