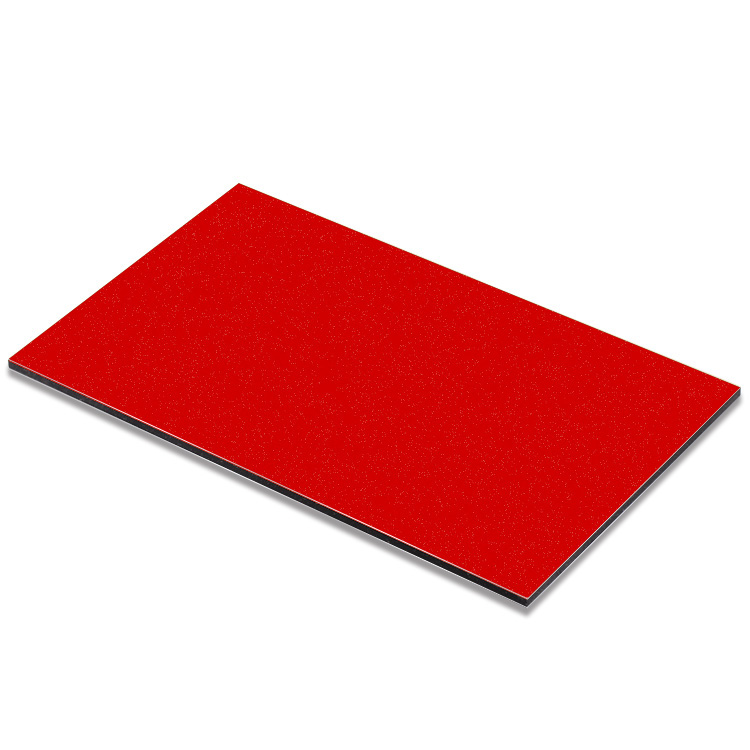

Pearlescent aluminum composite panel

Brand:	Alumtimes
Warranty:	More than 5 years
Size:	1220x2440mm or 1500x3000mm or custom
Application:	Indoor and outdoor architecture and decoration
Place of Origin:	Guangdong, China
Surface Treatment:	Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated
Aluminum skin thickness:	0.06/0.08/0.1/0.12/0.15/0.18/0.21-0.5mm or custom
Custom factory:	Customized on demand, contact sales for catalogue
After-sale Service:	Online technical support, Onsite Inspection, Free spare parts, Other
Project Solution Capability:	graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
Design Style:	Modern
Processing service:	Bending, Arc, Punching, Cutting, CNC Laser Engraving
Material:	1100/3003/5005 aluminum alloy
Get A Quote

Aluminium Composite Panel Details

1)Material:
A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer.
B) Core: nontox low density polyethylene.
C) Back: aluminium alloy sheet coated with polyester resin painting.
D) Surface coating thickness: 32μ±1μ.
E) Aluminium alloy: 3003 H24.
F) Sheet thickness: 0.3mm,0.4mm,0.5mm .

2)Dimensions:
A) Thickness: 3mm,4mm,6mm,8mm,10mm.
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max).
C) Length: 2440mm,3050mm,3200mm( max:6000mm).
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness.
E) Standard size:1220*2440mm.
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G) Non-stanard size are available according to requirement.

3)Standard:
A) West Europe standard ( Germany DIN Standard).
B) The EAST Europe standard ( Russian standard ).
C) The commonweathlth standard (U.K BS Standard ).
D) The North America ASTM standard.

4)Alumtimes® ACP compared with different products( Lightness / Rigidity ):
The composite structure of Alumtimes® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes Alumtimes® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.

5) Alumtimes® ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity

		Alumtimes® ACP		Aluminium
Rigidity (E J)	Section modulus	Thickness	Weight	Thickness	Weight
1250 kN cm2/m	1.25 cm3/m	3 mm	4.5kg/m2	2.7 mm	7.3kg/m2
2400 kN cm2/m	1.75 cm3/m	4 mm	5.5kg/m2	3.3 mm	8.9kg/m2

6) Alumtimes® ACP Physical Properties for Panel:

Panel density	5.5kg/m2
Peel Strength	Average 7.0 N/mm
Tensile Strength	52.5 Mpa
Flexural Strength	100.0 Mpa
Shear Strength	28.1 Mpa
