Brand: | Alumtimes |
Warranty: | More than 5 years |
Project Solution Capability: | graphic design |
Place of Origin: | Guangdong, China |
Function: | Anti-Static, Antibacterial, Fireproof, Mould-Proof |
Fireproof Grade: | :A2/B1 Grade |
Guarantee: | PVDF:15-20Years /PE:10 Years |
Certificate: | CE/ISO9001 |
Color: | 60 Colors |
After-sale Service: | Onsite Training |
Application: | Apartment |
Panel thickness: | 2/3/4/5/6mm |
Aluminum Thickness: | 0.06-0.50mm |
Get A Quote |
|

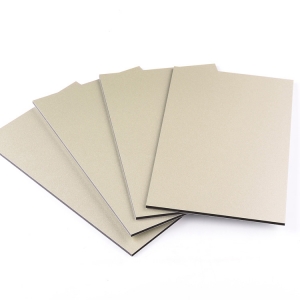

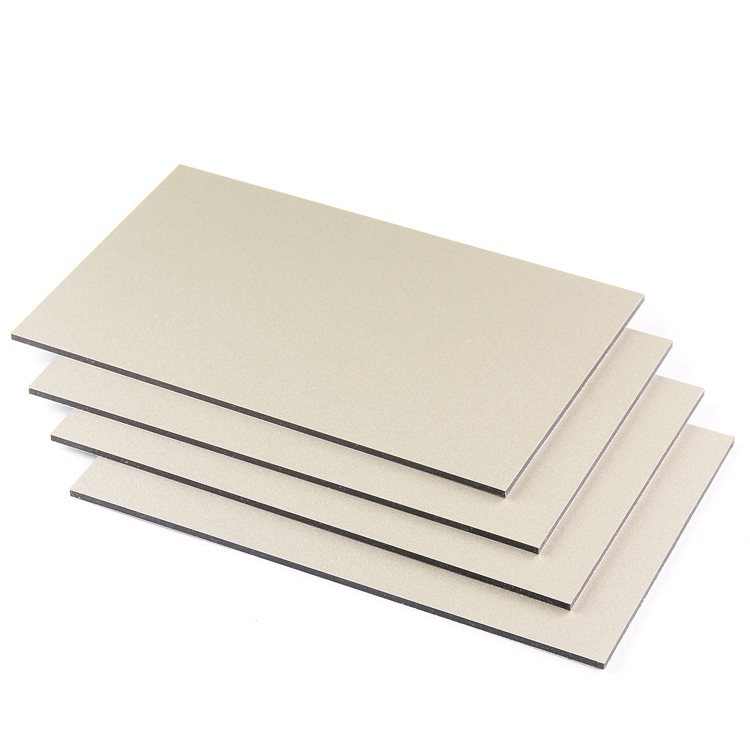

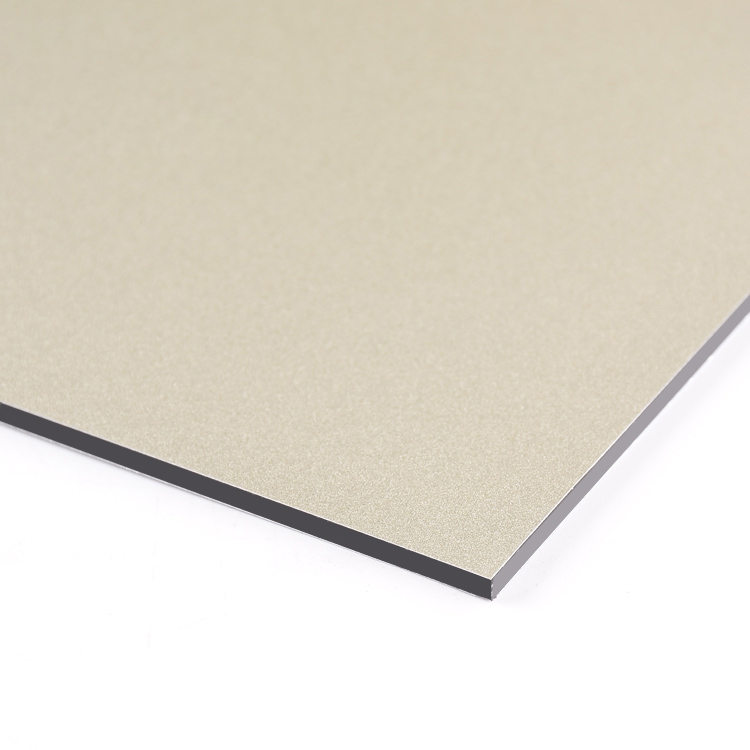

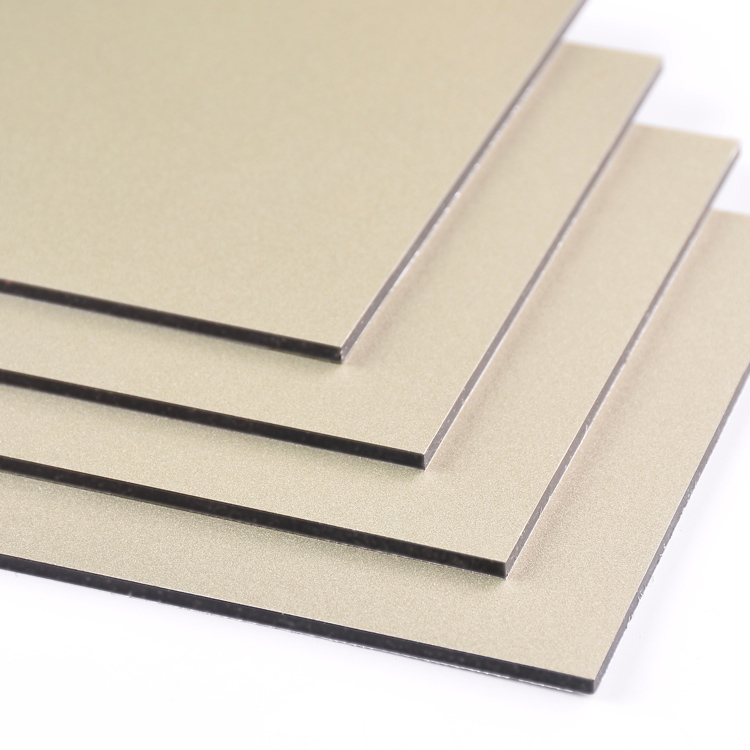

Aluminium Composite Panel Details |
1)Material:
A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer.
B) Core: nontox low density polyethylene.
C) Back: aluminium alloy sheet coated with polyester resin painting.
D) Surface coating thickness: 32μ±1μ.
E) Aluminium alloy: 3003 H24.
F) Sheet thickness: 0.3mm,0.4mm,0.5mm .
2)Dimensions:
A) Thickness: 3mm,4mm,6mm,8mm,10mm.
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max).
C) Length: 2440mm,3050mm,3200mm( max:6000mm).
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness.
E) Standard size:1220*2440mm.
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G) Non-stanard size are available according to requirement.
3)Standard:
A) West Europe standard ( Germany DIN Standard).
B) The EAST Europe standard ( Russian standard ).
C) The commonweathlth standard (U.K BS Standard ).
D) The North America ASTM standard.
4)Alumtimes® ACP compared with different products( Lightness / Rigidity ):
The composite structure of Alumtimes® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes Alumtimes® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.
5) Alumtimes® ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity
Alumtimes® ACP | Aluminium | ||||
Rigidity (E J) | Section modulus | Thickness | Weight | Thickness | Weight |
1250 kN cm2/m | 1.25 cm3/m | 3 mm | 4.5kg/m2 | 2.7 mm | 7.3kg/m2 |
2400 kN cm2/m | 1.75 cm3/m | 4 mm | 5.5kg/m2 | 3.3 mm | 8.9kg/m2 |
6) Alumtimes® ACP Physical Properties for Panel:
Panel density | 5.5kg/m2 |
Peel Strength | Average 7.0 N/mm |
Tensile Strength | 52.5 Mpa |
Flexural Strength | 100.0 Mpa |
Shear Strength | 28.1 Mpa |
