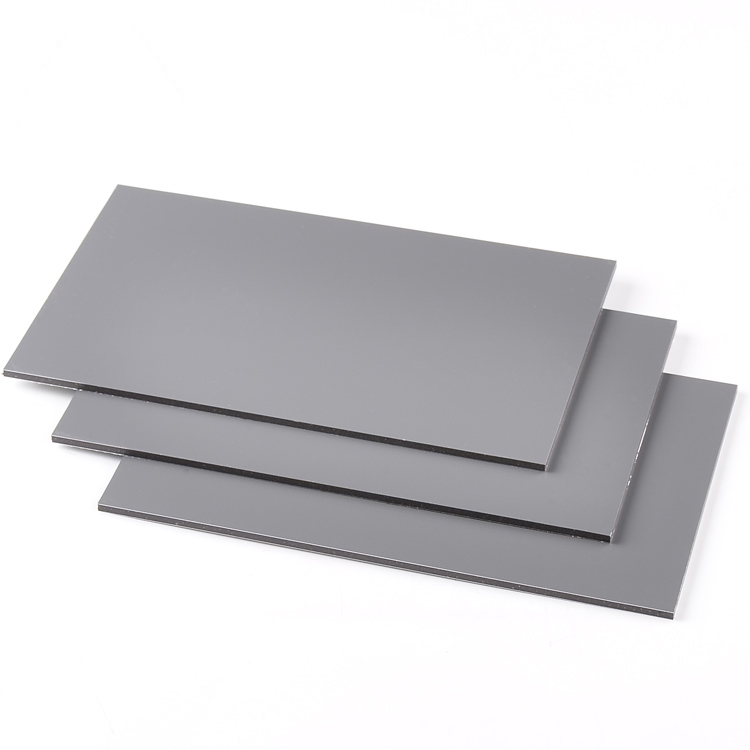

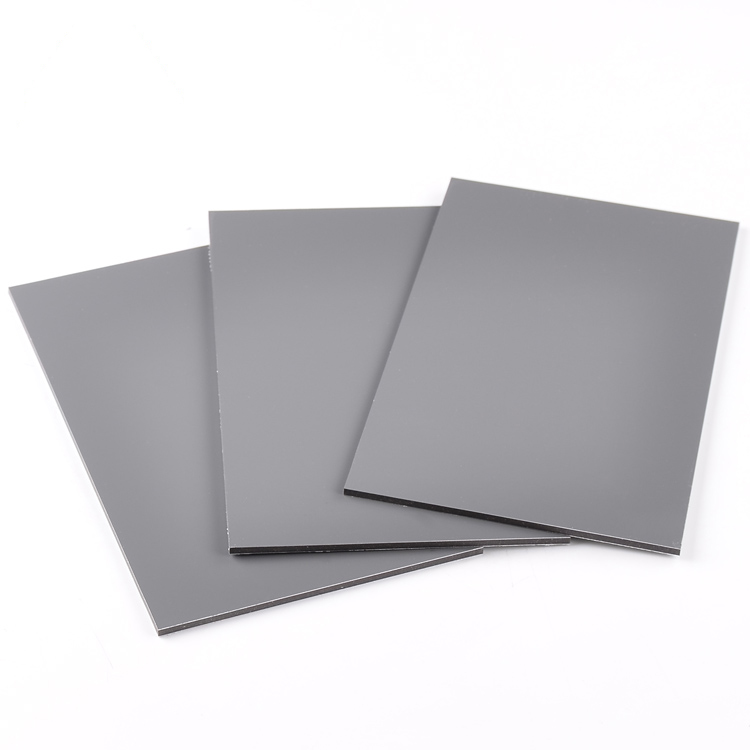

Aluminum composite panel

Brand:Alumtimes
Warranty:More than 5 years
After-sale Service:Onsite Training
Application:Office Building
Design Style:Modern

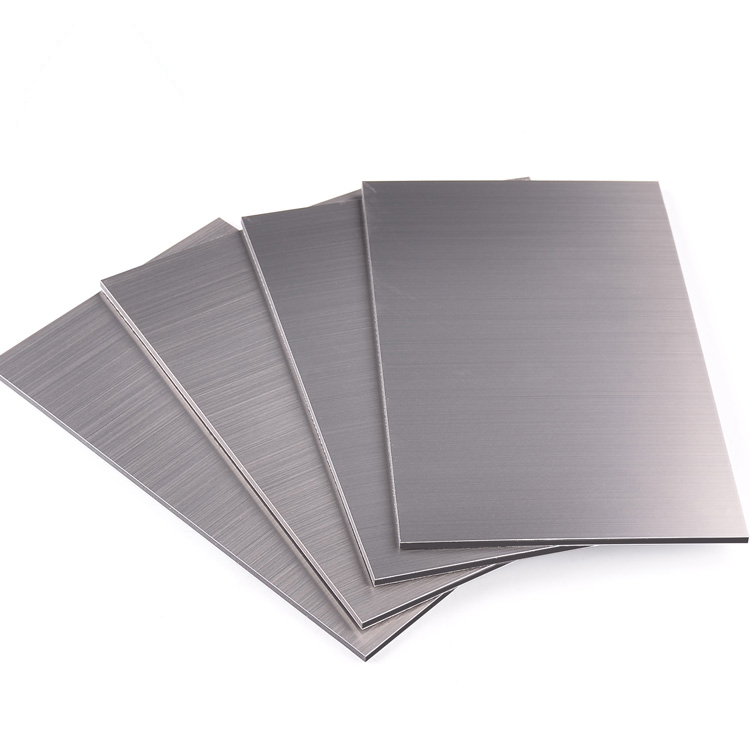

Surface Treatment:Anodized, Brushed, Mirror, PE Coated, Printing, PVDF Coated, Other
Panel thickness:3/4/5/6mm
Aluminum Thickness:0.06-0.50mm
Place of Origin:Guangdong, China
Function:Anti-Static, Antibacterial, Fireproof, Mould-Proof
Product name:acp mirror aluminium-plastic composite panel
Color:60 Colors
Packing:bulk or wooden box
Get A Quote

Aluminium Composite Panel Details


1)Material:

A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer.

B) Core: nontox low density polyethylene.

C) Back: aluminium alloy sheet coated with polyester resin painting.

D) Surface coating thickness: 32μ±1μ. E) Aluminium alloy: 3003 H24.

F) Sheet thickness: 0.3mm,0.4mm,0.5mm .


2)Dimensions:

A) Thickness: 3mm,4mm,6mm,8mm,10mm.

B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max).

C) Length: 2440mm,3050mm,3200mm( max:6000mm).

D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness.

E) Standard size:1220*2440mm.

F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.

G) Non-stanard size are available according to requirement.

3)Standard:

A) West Europe standard ( Germany DIN Standard).

B) The EAST Europe standard ( Russian standard ).

 C) The commonweathlth standard (U.K BS Standard ).

D) The North America ASTM standard.

4)Alumtimes® ACP compared with different products( Lightness / Rigidity ):

The composite structure of Alumtimes® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes Alumtimes® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.


5) Alumtimes® ACP compared with solid aluminium:

Required thickness and actual weights of panels with same rigidity



Alumtimes® ACP

Aluminium

Rigidity (E J)

Section modulus

Thickness

Weight

Thickness

Weight

1250 kN cm2/m

1.25 cm3/m

3 mm

4.5kg/m2

2.7 mm

7.3kg/m2

2400 kN cm2/m

1.75 cm3/m

4 mm

5.5kg/m2

3.3 mm

8.9kg/m2


6) Alumtimes® ACP Physical Properties for Panel:

Panel density

5.5kg/m2

Peel Strength

Average 7.0 N/mm

Tensile Strength

52.5 Mpa

Flexural Strength

100.0 Mpa

Shear Strength

28.1 Mpa
